The JUNIOR II's small size and refined compressor technology appeal especially to ambitious sports divers, who want a safe and reliable source of pure air, even in remote dive locations. The light weight and compact unit is portable by a single person and fits in every boot.
This compact BAUER diving unit has been manufactured using top quality components, upholding BAUER's core characteristics of reliability and safety.
The even more compact design and a variety of smart improvements make the JUNIOR II an even better value for money for committed sports divers.
The new JUNIOR II is a product based on more than 60 years of experience and strict BAUER Quality Management according to DIN EN ISO 9001.
Technical Data
Our patented TRIPLEX® filter cartridge is a safe source of pure breathing air according to DIN EN 12021 (formerly DIN EN 3188).
TRIPLEX® filter cartridge: P21 filter with modifications (condensate outlet, modified filter bottom, shorter housing and standard safety valve).
Condensate drain: manual drain operated by two screw knobs on the filter housing and one on the separator after the second stage. These drains have been placed at a height that leaves enough space for a condensate container underneath.
All Compressor Versions: L-shaped frame with special base plate for the compressor block and motor allowing fast and simple belt tensioning, V-belt drive (SPZ belt), Plastic fan shroud with integrated holders for the telescopic intake tube, Steel carrying handle fixed to the base plate allows easy transport by two people (rails on both sides of the unit), Rubber anti-vibration feet, Integrated fill adapter brackets for two hoses with DIN and ISO connections.
1) available with switch over device 330 / 225 bar or 225 bar/330 bar alternatively
2) standard unit with integrated telescopic intake tube and Subaru four-stroke engine
* cylinder filling from 0 to 200 bar
** filling rate for 1 litre cylinder capacity from 0 to 200 bar
Breathing Air Compressor OCEANUS
Breathing Air Compressor OCEANUS
For a professional performance, which offers toughness, mobility and greater air capacity!
OCEANUS is designed to go on vessels, diving boats and expeditions.
The light weight and compact unit is portable by a single person and fits in every boot. The large capacity of the oil sump and the oil pump allow operation in extreme inclinations of up to 30° (motor with combustion engine up to 20°).
The use of stainless steel and kevlar for frame and filling device ensures extreme resistance to corrosion.
Durable and Extremely Tough
For best possible resistance to corrosion frame, handle and safety-filling device are made of stainless steel. Filling hose is made of kevlar. Inter- and after coolers are made of galvanized steel.
Technical Data
2) with telescopic intake tube and Subaru motor
3) 230V, 50 Hz
* cylinder filling from 0 to 200 bar
** filling rate for 1 litre cylinder capacity from 0 to 200 bar
Breathing Air Compressor CAPITANO 140
CAPITANO 140 - The Mobile Unit for Heavy Duty Use, 140 l/min
Professional quality - custom tailored to meet particular requirements
The mobil unit "CAPITANO 140" is designed for professional applications, where toughness, compactness and weight is of importance.
Mobile units with diesel engine on request.
The driving gear is suitable for short running as well as continuous operation. The 3-/4stage construction and the heavy duty industrial roller bearings guarantee maximum lifetime for all professional applications. The first stage and the high pressure final stage are equipped with high tech polymer piston rings, which proved their outstanding wear and tear properties during several endurance tests in an independent Quality Inspection Center. The maintenance-free rigid oil pump guarantees reliable lubrication.
Resistent
A newly developed, supra-light aluminium chassis guarantees best protection against corrosion! Inter- and after coolers made of stainless steel resist toughest climatical conditions. The vibration reducing construction of the motor rocker stands for smoothest compressor operation as well as self-restretching of the v-belt.
Economic A filter cartridge of the new SUPER-TRIPLEX P 31 fills up to 230 diving cylinders. *
Optional: P 41 filter system for up to 530 diving cylinder fillings. *
* 10 liter diving cylinder at 20 °C ambient temperature
Technical Data
2) Cylinder filling from 0 to 200 bar (0 to 3000 psig)
3) Filling rate for 1 l cylinder capacity from 0 to 200 bar (0 to 3000 psig)
Breathing Air Compressor MARINER 200
Professional quality - custom tailored to meet particular requirements
With 200 l/min. it is the most versatile among the new units of the PROFI LINE II. Crash frame in series.
Mobile units with diesel engine on request.
Indestructible
The driving gear is suitable for short running as well as continuous operation. The 3-/4stage construction and the heavy duty industrial roller bearings guarantee maximum lifetime for all professional applications. The first stage and the high pressure final stage are equipped with high tech polymer piston rings, which proved their outstanding wear and tear properties during several endurance tests in an independent Quality Inspection Center. The maintenance-free rigid oil pump guarantees reliable lubrication.
Resistent
newly developed, supra-light aluminium chassis guarantees best protection against corrosion! Inter- and after coolers made of stainless steel resist toughest climatical conditions. The vibration reducing construction of the motor rocker stands for smoothest compressor operation as well as self-restretching of the v-belt.
Economic
A filter cartridge of the new SUPER-TRIPLEX P 31 fills up to 230 diving cylinders. *
Optional: P 41 filter system for up to 530 diving cylinder fillings. *
* 10 liter diving cylinder at 20 °C ambient temper

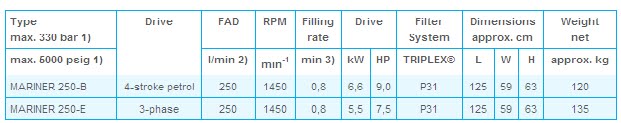

Breathing Air Compressor MARINER 250
MARINER 250, the Power Pack for Large Delivery of Air, 250 l/min
Professional quality - custom tailored to meet particular requirements
Even more performance and equipped with the new SUPER-TRIPLEX P31 in series.
Mobile units with diesel engine on request.
Indestructible
The driving gear is suitable for short running as well as continuous operation. The 3-/4stage construction and the heavy duty industrial roller bearings guarantee maximum lifetime for all professional applications. The first stage and the high pressure final stage are equipped with high tech polymer piston rings, which proved their outstanding wear and tear properties during several endurance tests in an independent Quality Inspection Center. The maintenance-free rigid oil pump guarantees reliable lubrication.
Resistent
A newly developed, supra-light aluminium chassis guarantees best protection against corrosion! Inter- and after coolers made of stainless steel resist toughest climatical conditions. The vibration reducing construction of the motor rocker stands for smoothest compressor operation as well as self-restretching of the v-belt.
Economic
A filter cartridge of the new SUPER-TRIPLEX P 31 fills up to 230 diving cylinders. *
Optional: P 41 filter system for up to 530 diving cylinder fillings. *
* 10 liter diving cylinder at 20 °C ambient temperature

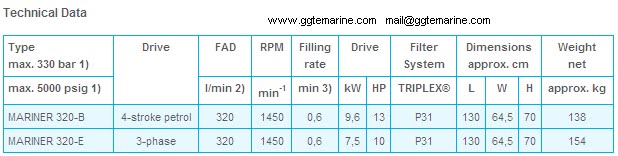

MARINER 320 – Mobile with Maximum Power, 320 l/min
Breathing Air Compressor MARINER 320
With 320 l/min. the new MARINER 320 is the most powerful portable compressor worldwide!
Maximum F.A.D. and little space requirement qualify the MARINER 320 to be the top chioice for professional use.
The extremely robust block and corrosion-resistant components allow smoooth operation even under toughest climatical conditions.
Mobile units with diesel engine on request
Indestructible
The driving gear is suitable for short running as well as continuous operation. The 3-/4stage construction and the heavy duty industrial roller bearings guarantee maximum lifetime for all professional applications. The first stage and the high pressure final stage are equipped with high tech polymer piston rings, which proved their outstanding wear and tear properties during several endurance tests in an independent Quality Inspection Center. The maintenance-free rigid oil pump guarantees reliable lubrication.
Resistent
A newly developed, supra-light aluminium chassis guarantees best protection against corrosion! Inter- and after coolers made of stainless steel resist toughest climatical conditions. The vibration reducing construction of the motor rocker stands for smoothest compressor operation as well as self-restretching of the v-belt.
Economic
A filter cartridge of the new SUPER-TRIPLEX P 31 fills up to 230 diving cylinders. *
Optional: P 41 filter system for up to 530 diving cylinder fillings. *
* 10 liter diving cylinder at 20 °C ambient temperature
MARINER200
Technical Data Type max. 330 bar 1)Drive FAD RPM Filling rate Drive Filter System Dimensions approx. cm Weight net max. 5000 psig 1) l/min 2) min-1 min 3) kW HP TRIPLEX® L W H approx.KG MARINER 200-B 4-stroke petrol 200 1300 1,0 6,1 8,0 P21 125 59 63 115 MARINER 200-E 3-phase 200 1300 1,0 4,0 5,5 P21 125 59 63 115 1) also available with switch over device 330 / 225 bar (5000 / 3300 psig) = HU type, e.g. CAPITANO 140 B-HU 2) Cylinder filling from 0 to 200 bar (0 to 3000 psig) 3) Filling rate for 1 l cylinder capacity from 0 to 200 bar (0 to 3000 psig)bauer compressor dubai uae official agent dealer
MARINER 320 – Mobile with Maximum Power, 320 l/min
Breathing Air Compressor MARINER 320
Professional quality - custom tailored to meet particular requirements
With 320 l/min. the new MARINER 320 is the most powerful portable compressor worldwide!
Maximum F.A.D. and little space requirement qualify the MARINER 320 to be the top chioice for professional use.
The extremely robust block and corrosion-resistant components allow smoooth operation even under toughest climatical conditions.
Mobile units with diesel engine on request
